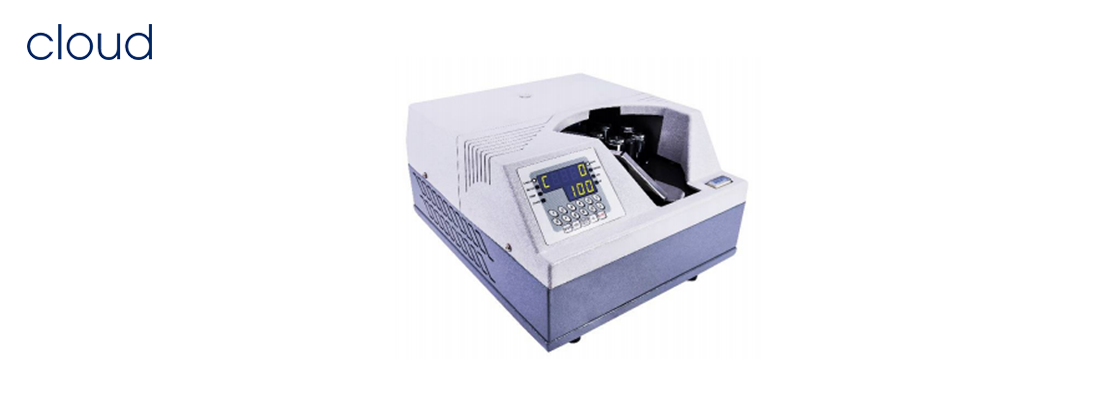

Note Counting Machine in NC150 Pakistan

  • Vacuum Suction based technology with five suction spindles, CHECK, BATCH, FREE, STAMP & ADD modes.
  • Useful for bundled note or loose note counting, Auto and manual control of counting
  • Counting speed - 3.5 seconds for 100 notes,
  • Hopper capacity - 200 notes
  • Spindle- Full steel made.
  • High reliability and versatility, Special dust collecting filters
  • Compact design - with ABS top & CNC manuf. machine Cabinet & mechanical parts
  • Customer / Dual display - Serial port with only 3 wires, 3 Digit 7 segment display
  • Advanced & Latest Technology – Micro-Controller 64 k internal memory
  • Controller Speed - high speed 20 MHZ
  • Main Display - 5 x 3 seven segments.
  • Advanced DC to DC converter with internal filter
  • Advanced automatic short circuit protection for DC voltage
  • Heavy Duty Pump,230 V, 50 Hz, 1/3 HP
  • 230V , 50Hz, 60 RPM, 40 W Hooper Motor
  • 230V, 50Hz, 1440 RPM, 40 W, Spindle Motor
  • Net Weight: 23 KG
  • Power consumption: 375w approx. in operation, 7W approx. in Standby

NC-150

Data Sheet
