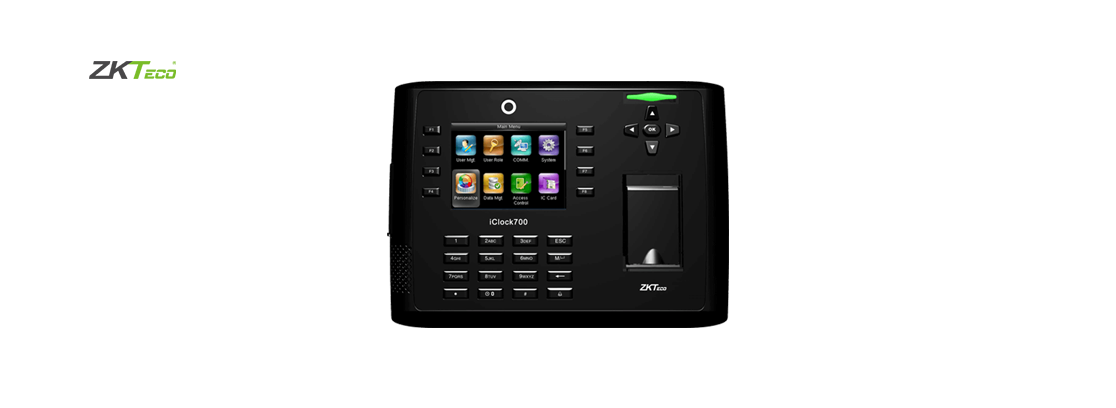

Biometric Fingerprint System in Pakistan - Zkteco ICLOCK700

Biometric Fingerprint System in Pakistan - Zkteco ICLOCK700 is compatible with various types of USB flash disks, ADMS and former SDK. Moreover,RS232/485, TCP/IP and USB client ensures a smooth date transmission between device and PC. It also has GPRS,Wi-Fi and 3G connectivity and access control connectivity with Wiegand out and in, electric lock, door sensor, exit button,alarm and Door Bell.

Intuitive and stunning UI designed with the most popular and internationalized element.
Interface operation adopts modularized hierarchical design. Simpler, Better and More logical.
Faster matching speed: Less than 1 second
Enhanced Features and Performance
Multi-languages
Data backup and retrieve.
Advanced User ID consisting of letters and numbers
Excellent Expandability
Easy to extend functions and customize customers’ requirements. Access Control Interface
For Wiegand in and out, door lock connection, alarm and bell.

Technical Specifications

Fingerprint Capacity 8000
ID Card Capacity 10,000 (Optional)
Record Capacity 200,000
Display 3.5-inch TFT Screen
Communication RS232/485, TCP/IP, USB-client
Standard Functions Workcode, SMS, DST, Webserver, Scheduled-bell, Self-Service Query, Automatic Status Switch,Photo ID, T9 Input,
Anti-passback, Camera, Built-in Battery , Multiple Verify Mode
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, and Door Bell
Wiegand Sigal Input & Output
Optional Functions ID/Mifare/HID, External Printer, ADMS, Wi-Fi, GPRS, 3G
Software ZKTime.Net 3.0
Power Supply DC 12V 3A
Verification Speed ≤ 1Sec.
Operating Temp. 0°C - 45°C
Operating Humidity 20% - 80%
Dimension 225.2×166.0×46.3mm (Length×Width×Thickness)
Gross Weight 1.94 kg
