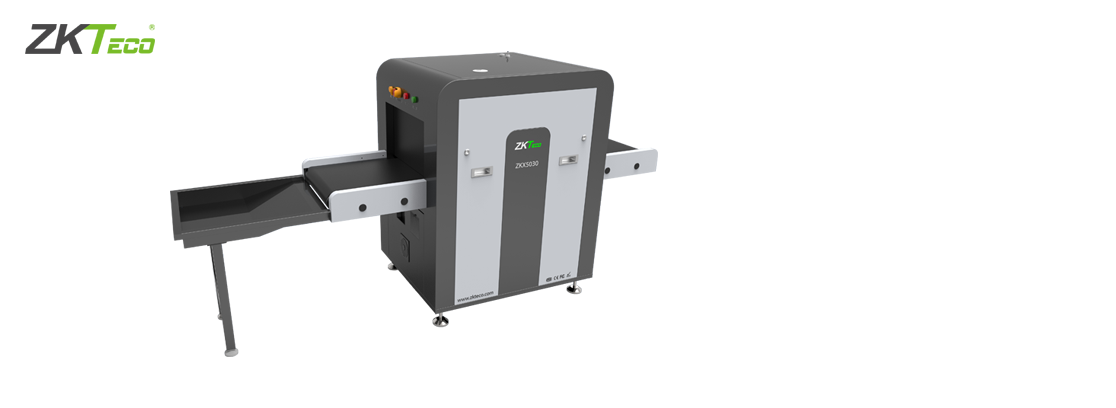

ZKX6550 X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels. ZKX6550 uses reliable high quality dual energy X-ray generator. With the superb image algorithm, ZKX6550 could offer clear scanning image, which allows operators to identify potential threat items visually. ZKX6550 has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password.
With ergonomic modern design, ZKX6550 could help operators to identify suspicious items fast and accurately.

  • Offer higher Wire Resolution with HAMAMATSU® X-ray detector
  • True-color scanning image
  • Innovative fingerprint identification
  • Widely usable for carry-on baggage
  • Fingerprint Console Board
  • Console Desk
  • Bidirectional Scan
  • Energy Saving Mode
  • Video surveillance system
  • Electrical weighing system

Technical Specifications

  • Tunnel Size        W660mm × H510mm
  • Speed 0.20        m/s
  • Height of Transmission        Belt 1300 mm
  • Maximum Load        ≤180 kg (Adequate distribution)
  • Wire Resolution         40 AWG (0.0787mm metal wire)
  • Space Definition         Horizontal Φ1.0mm \ Vertical Φ2.0mm
  • Penetrate Definition         34 AWG
  • Penetration        40mm Steel board
  • Monitor 17         inch LED
  • System Function      High density alarm, Explosive/Drug auxiliary detect,TIP, Luggage counter, System running timer, X-ray emitting timer, Training,64 times continuous zoom in
  • Optional Function        Video surveillance system, Bidirection scan, Electrical weighing system, Energy saving mode, Ultrasonic rat repellent
  • Film Safety        ASA/ISO1600 standard of film safety
  • X-ray         System
  • Tube Voltage         150 Kv
  • Cooling Seal        oil cooling / 100%
  • Single Inspection Dosage Rate        ≤1.0 μ Gy
  • Radiation Leak Dosage        0.1μ Gy/h (5cm from the surface)
  • Installation        Specification
  • Package Size         L2200mm × W1135mm × H1515mm
  • Console Desk Size        L830mm × W800mm × H1330mm
  • Package Weight        680KG+105KG (Console desk)
  • Power Consumption        1 kVA
