The EB-L630U produces more engaging and impactful displays even
in brightly lit environments. It offers impressive 6,200-lumen
brightness and WUXGA Full HD resolution at an affordable price.
This means you can upgrade to laser performance and reliability,
with reduced power consumption. It also features: 4K input
support, detail enhancement technology, edge blending and wide
lens shift to fit challenging installation environments. The
EB-L630U is capable of up to 500-inch displays, without any
reduction in clarity or vivid detail.
-
Projection System: 3LCD Technology, RGB liquid crystal shutter
- LCD Size: 0.67 inch with C2 Fine
-
Color Light Output: 6,200 Lumen- 4,340 Lumen (economy) In
accordance with IDMS15.4
- Resolution: WUXGA, 1920 x 1200, 16:10
- Aspect Ratio: 16:10
- Contrast Ratio: Over 2,500,000 : 1
-
Laser Light source: 20,000 hours Durability High, 30,000 hours
Durability Eco
-
Keystone Correction: Manual vertical: ± 30 °, Manual
horizontal ± 30 °
- Colour Video Processing: 10 Bits
- Colour Reproduction: Upto 1.07 billion colours
- Throw Ratio: 1.35 - 2.20:1
- Projection Lens Zoom Ratio: 1.35 - 2.2 : 1
- Lens: Optical
- Projection Lens Focal Length: 20 mm - 31.8 mm
-
Power consumption: 345 Watt, 258 Watt (economy), 0.3 Watt
(standby)
-
Product dimensions: 440 x 339 x 136 mm (Width x Depth x
Height)
- Loudspeaker: 10 Watt
-
6,200-lumen brightness: Crisp images and bright colours, even
in well-lit rooms
-
WUXGA resolution: Sharp Full HD images for excellent clarity
-
Futureproofed connectivity options: 4K input support, HDMI,
HDBaseT, integrated Wi-Fi and screen mirroring
-
Easy, flexible installation: Lightweight and compact design
with wide lens shift
-
Support social distancing: Scalable display size of up to 500
inches

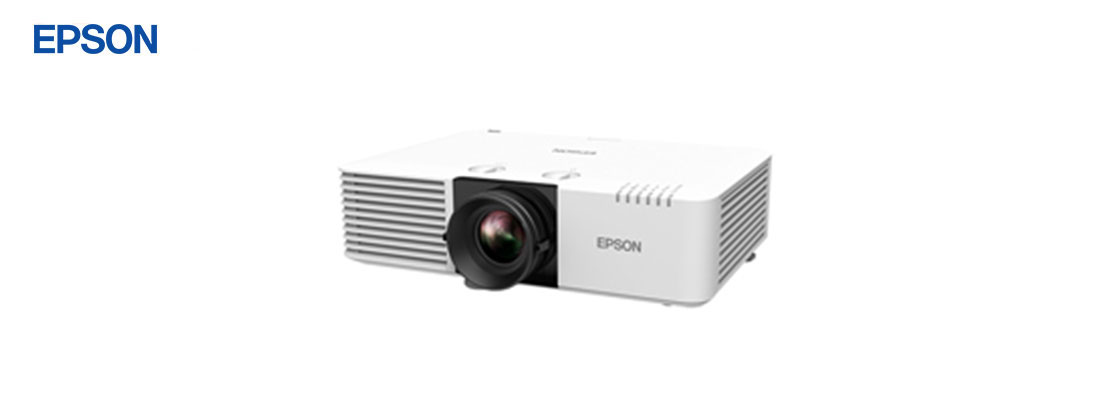

Epson EB-L630U
Data Sheet
