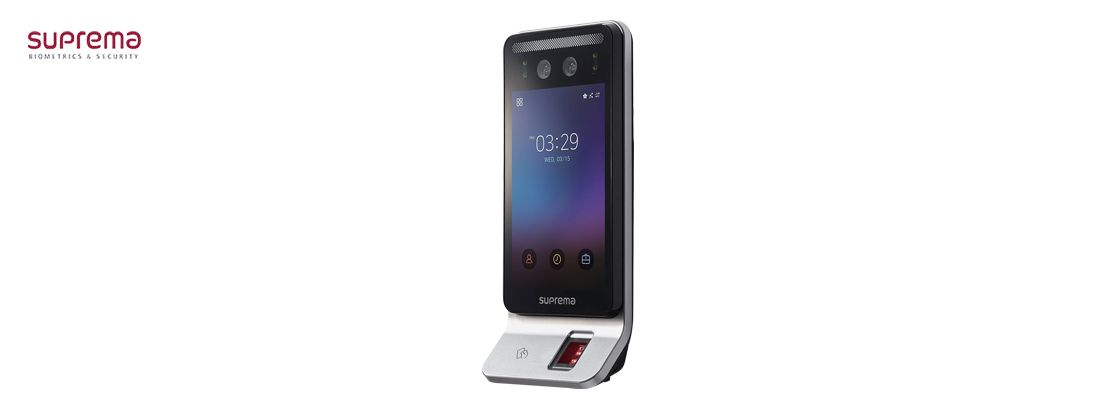

Suprema Biometric Readers in pakistan - FaceStation F2

Suprema FaceStation F2 is a fusion multimodal terminal with unmatched face recognition performance. Experience the exceptional authentication accuracy and anti-spoofing performance achieved by Suprema’s unique Fusion technology.

Biometric : MIFARE Plus, DESFire EV1/EV2, FeliCa125kHz EM & 13.56MHz MIFARE,
Mobile : NFC, BLE
CPU : 1.8 GHz Dual Core + 1.4 GHz Quad Core
Memory : 16GB Flash + 2GB RAM
LCD Type : 7” IPS color LCD
LCD Resolution : 800 x 1280 pixels
Sound : 16bit
Operating Temperature : -20°C ~ 50°C (-68°F ~ 122°F)
Operating Humidity : 0% ~ 80%, non-condensing
Dimension (W x H x D) : (4.7" x 8.8" x 0.9")119.8mm x 223mm x 23.5mm
Device : 585g
IP Rating : IP65
CPU : 1.4 GHz Quad Core : 1.4 GHz Quad Core
Certiﬁcates : CE, FCC, KC, RoHS, REACH, WEEE
Recognition Distance : 0.5m ~ 1.3m (19.7" ~ 51.2")
Recognition Height : 140cm ~ 190cm (55.1" ~ 74.8")
Matching Speed : Less than 0.5 sec
(Anti-Spooﬁng)Live Face Detection : Supported
Image Dimension : 300 x 400 pixels
Resolution : 500 dpi
Template : SUPREMA / ISO19794-2, ANSI-378
Extractor / Matcher : MINEX certiﬁed and compliant
Sensor Certiﬁcates : FBI PIV and FBI Mobile ID FAP20
Live Fingerprint Detection : Supported (SW-based)
Ethernet : 10/100 Mbps, auto MDI/MDIX
RS-485 : 1ch Host or Slave (Selectable)
Wiegand : 1ch Input or Output (Selectable)
TTL Input : 2ch Inputs
Relay : 1 Relay
USB : USB 2.0 (Host)
Tamper : Supported

FaceStation 2

Data Sheet
