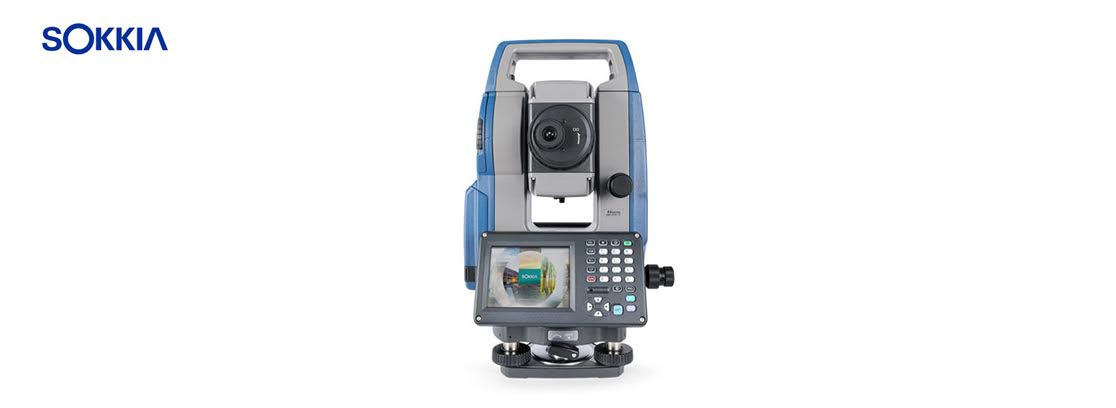

Sokkia FX-202 Total Station in Pakistan - Surveying Total Stations

The FX-202 total station is fast and accurate with onboard MAGNET software and a ruggedized rain-proof design used by surveyors around the globe. The FX-200 replaces the FX-100 that was launched in 2012. The FX-202 total station has a more accurate and longer distance EDM range, an improved power system, and a faster boot up speed so you can get straight to work.

Windows® CE operating system in compact, rugged body
MAGNET or GeoPro Field on-board application software
Advanced Angle Measurement System
RED-Tech advanced reflectorless measurement
Long-Range Bluetooth® wireless communication
TSshield security, tracking, and remote diagnostic support

Magnification / Resolving power : 30x / 2.5"
Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for EDM)
Field of view : 1°30' (26m/1,000m)
Reticle illumination : 5 brightness levels
Display resolution : 0.5" / 1" (0.0001 / 0.0002gon, 0.002 / 0.005mil)
Accuracy (ISO 17123-3:2001) : 2"
Dual-axis compensator / Collimation compensation : Dual-axis liquid tilt sensor, working range: ±6' (±111mgon) / Collimation compensation available
Laser output*1 : Reflectorless mode: Class 3R / Prism/sheet mode: Class 1
Measuring time* : Fine: 0.9s (initial 1.5s), Rapid: 0.6s (initial 1.3s), Tracking: 0.4s (initial 1.3s)
Operating system : Windows Embedded Compact7
Display / Keyboard : 3.5inch, Transmissive TFT QVGA color LCD with LED backlight, Touch screen, Automatic brightness control / 29 keys with backlight
Control panel location : On both faces (Face 2 is only touch screen display )
Guide light : Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.)
Laser-pointer : On both faces (Face 2 is only touch screen display )
Optical plummet : Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom
Dust and water protection : IP65 (IEC 60529:2001)
Operating temperature : -20 to 60° C (-4 to 140°F)
Size (with handle) : 191(W)x190(D)x348(H)mm
Weight with battery & tribrach : Approx. 5.7kg (12.3 lb.)
Battery : Li-ion rechargeable battery
