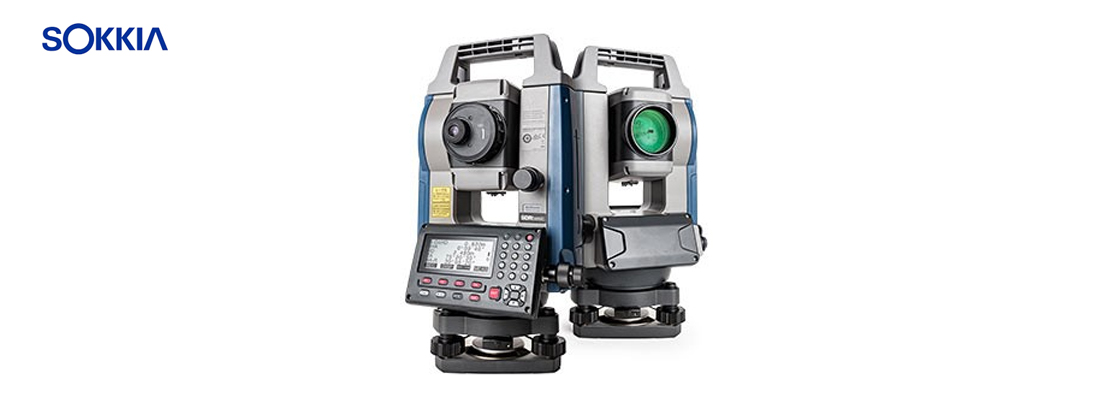

iM-55 Total Station in Pakistan - Sokkia IM-50 Series Total Station

The iM-55 is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality. The sleek design is built tough, with a water and dustproof IP66 rating, integrated Bluetooth® capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow. The iM-50 series is also armed with a top line EDM, generous internal memory storage, and SDRbasic on-board software so you have everything you need to get the job done out in the field.

Integrated Construction and Survey Application Software
Fast, accurate, and powerful EDM
Reflectorless up to 500m
Prism range up to 4,000 m
500m Long Range Reflector-less Measurement

Objective aperture : 45mm (1.8in.)
Field of view : 1°30' (26m/1,000m
Magnification / Resolving power : 30x / 2.5"
Minimum Display : 1"/5" (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001) : 5"
Dual-axis compensator / Collimation compensation : Dual-axis liquid tilt sensor, working range: ±6'
Laser output : Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
Measuring time* : Fine: 0.9s (initial 1.5s), Rapid: 0.6s (initial 1.3s), Tracking: 0.4s (initial 1.3s)
Operating system : Linux
Display / Keyboard : Graphic LCD, 192 x 80 dots, backlight : on/off (Selectable) / Alphanumeric keyboard / 28 keys with backlight
Control panel location : On single face
Laser-pointer : Coaxial red laser using EDM beam
Optical plummet : Magnification: 3x, Minimum focus: 0.5m (19.7in.) from tribrach bottom
Dust and water protection : IP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF)
Instrument height : 192.5mm from tribrach mounting surface
Size (with handle) : 183(W)x 174(D)x 348(H)mm (On single face)
Weight with battery & tribrach : Approx. 5.1kg (11.3lb)
Battery : Li-ion rechargeable battery BDC46C
