A 7,000 lumen high brightness projector designed to deliver
unyielding laser performance, from any position to most
surfaces, up to 20,0001 long lasting hours for the laser light
source - maintenance-free. 4K Enhancement Technology shifts each
pixel to surpass Full HD resolution on screen. 2 Color
brightness (color light output) and white brightness (white
light output) will vary depending on usage conditions. Color
light output measured in accordance with IDMS 15.4; white light
output measured in accordance with ISO 21118.
-
Projection System : High-aperture Epson 3LCD, 3-chip
technology
- Projection Method: Front/rear/ceiling mount
- Driving Method : d Poly-silicon TFT Active Matrix
-
Native Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x
2)
-
Resolution on Screen: WUXGA with 4K Enhancement1 /4.6 million
pixels
-
Pixel Number in Device: 2,304,000 pixels (1920 x 1200) x 3
chips
-
Signal Input : Maximum Display Resolution: 4096 x 2160
(resizing display) Display Resolution: 1920 x 1200 pixels
- Aspect Ratio: Supports 4:3, 16:9, 16:10
- Pixel Arrangement: Cross stripe
- Color Brightness: Color Light Output: 7,000 lumens
- White Brightness: White Light Output: 7,000 lumens
- Contrast Ratio : 2,500,000:1 (Dynamic Contrast: On)
- Brightness Uniformity (typical) : 85%
- Color Reproduction: Up to 1.07 billion colors
-
Keystone Correction: Vertical: ±45 degrees; horizontal: ±30
degrees
- Illumination Technology : Laser Phosphor
- Light Source Life (Normal): 20,000 hours
-
Dynamic projection capabilities — advanced built-in Edge
Blending, image warping and shape overlay features for a
variety of applications; direct playback from USB storage
media
-
Simplified installation features — full 360-degree mounting,
wide lens shift, versatile connectivity; inputs including
HDBaseT™ and HDMI® (HDCP 2.2)
-
Customized performance — brightness modes to maximize light
source life and provide a consistent brightness level
-
Multi-projector setup software — free software controls
networked projectors and gives access to warping and edge
blending
-
Web- or network-based remote management — control and monitor
projector status

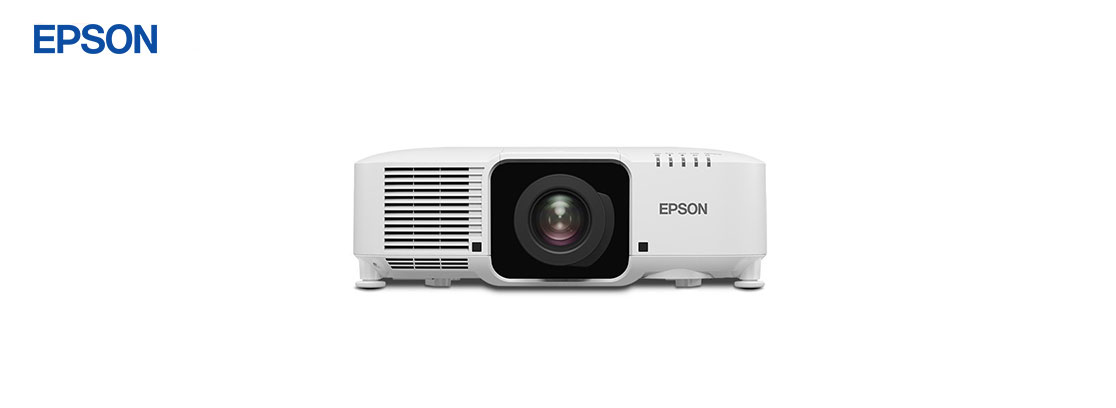

Epson EB-L1070UNL
Data Sheet
