Get ready to impress and do even more with the the EB-L20000UNL
high brightness laser projectors. Deliver stunning images in
native 4K resolution1 , and revel in colour brightness of up to
20,000 lumens with Epson 3LCD technology. Enjoy ease of mobility
and installation flexibility. And high reliability with a robust
design protected by a triple layered dust-proof structure. Put
together, businesses now have all it takes in Epson to make a
powerful impact on a bigger stage. A newly developed liquid
cooling system maintains optimal temperatures of key optical
elements. The inorganic LCD panels, inorganic phosphor wheel and
laser light source are kept at optimal temperature no matter how
the projector is installed. This efficient cooling system
contributes to minimising body size and noise.
-
Projection System : RGB liquid crystal shutter projection
system
- LCD Size : 1.03” (D10)
- Native Resolution: WUXGA (1920 x 1200)
-
Projection Lens Type: Power Zoom / Power Focus / Power Shift
- Projection Lens F-Number: 1.8 - 2.3
- Projection Lens Focal Length : 36.0 - 57.4 mm
- Zoom Ratio: 1 - 1.61
- Throw Ratio: 1.57 - 2.56
- Lens Exchange: Yes
- Lens Shift Mode : Powered
- Vertical (Up/Down): ±60%
- Horizontal (Left/Right): ±18%
- Lightsource Type: Laser Diode
-
Lightsource Life (Normal / Extended): 20,000 / 30,000 hours
- Zoom Wide: 60” - 1,000” [1.99 - 34.43 m]
- Zoom Tele: 60” - 1,000” [3.26 - 55.63 m]
- White Light Output (Normal/Eco): 20,000 / 14,000 lm
-
Designed for demanding environments — features a sealed light
source and optical engine for outstanding durability for live
events and fixed installations
-
Dynamic projection capabilities — with advanced tools like
tiling assist, Edge Blending and auto-color adjustment for
fast installation; free software for multi-projector setup
-
Bold, vibrant images — supports High Dynamic Range (HDR) via
HDR10 (PQ) and Hybrid Log Gamma (HLG); BT.709 color space
-
Mechanical shutter — protects against damage from external
laser lights
- Frame interpolation — ideal for fast-moving images
-
Wide lens shift — optimized lens and optical engine design

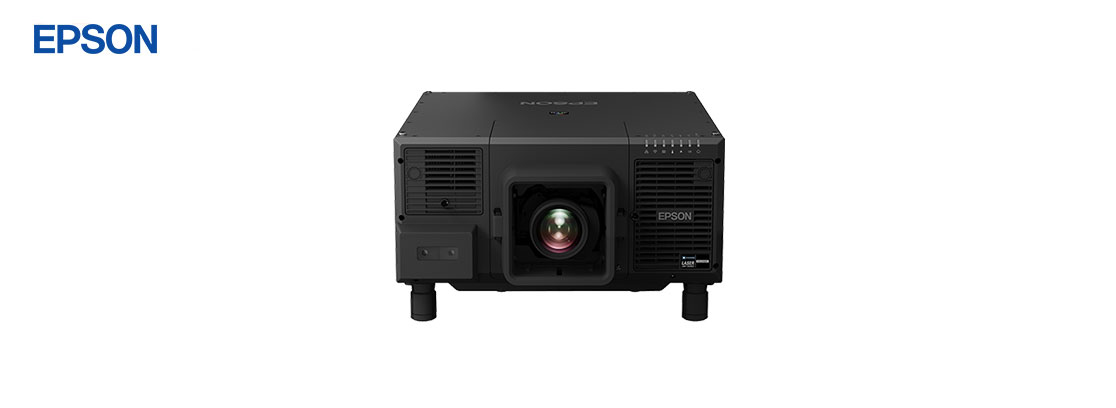

Epson EB-L20000UNL
Data Sheet
