Fingerprint Card System in Pakistan - Zkteco ICLOCK880-H

Fingerprint Card System in Pakistan - Zkteco ICLOCK880-H

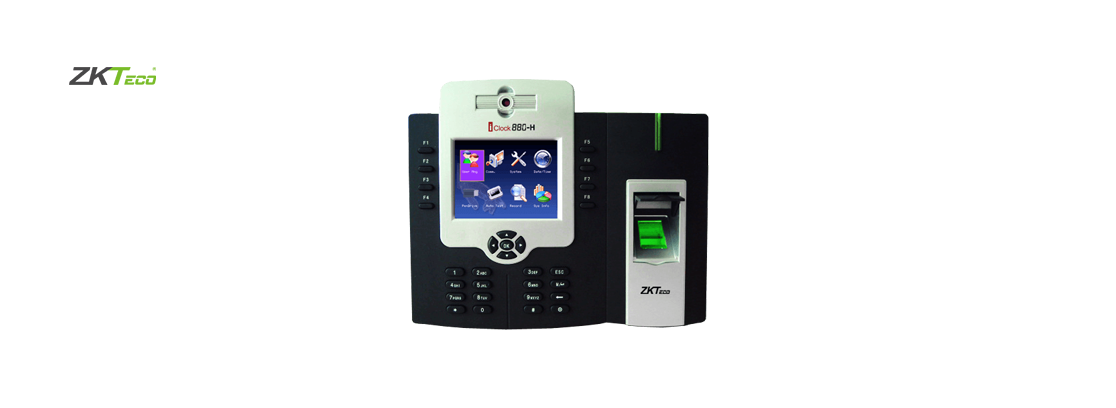

iClock880-H features ZK’s high performance, high image quality optical fingerprint sensor. The patented optical sensor is resistant to scratches and impact. the device has camera and 3.5” color TFT-LCD display.
The communication interface of the device includes TCP/IP, RS232/485. Backup battery is standard in case of power failure. The device has professional access control function it can be used in multi-factor identification modes including fingerprint, password, RFID card or any combination.

  • 50,000 templates (1: N) and 800,000 records.
  • Multimedia 3.5’’ TFT screen.
  • Internal Camera and Photo- ID support the user’s photo display and make T&A application more visible and reliable
  • Built-in backup battery.
  • Eliminates buddy punching
  • Optional integrated proximity or smart card reader
  • Built-in USB port allows for manual data transfer when network isn’t available.
  • 8 user-defined function keys.
  • Relay contacts for lock and alarm.
  • Multi Languages Support
  • Audio-Visual indications for acceptance and rejection of valid/invalid fingers
  • SDK available for OEM customers and software devel opers.

Technical Specifications

  • Fingerprint Capacity 50,000
  • Transaction Capacity 800,000
  • Hardware Platform ZEM800
  • Sensor ZK Optical Sensor
  • Algorithm Version ZK Finger v10.0
  • Communication TCP/IP
  • Standard Functions Workcode, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, Anti-passback, 9 digit user ID, photo-ID, Camera, Built-in Battery
  • Access Control Interface 3rd Party Electric Lock, Door Sensor, Ext Button, Alarm, and Door Bell
  • Wiegand Signal Input & Output
  • Optional Functions ID/Mifare/HID, External Printer, ADMS
  • Display 3.5 inches TFT Screen
  • Power Supply 12V DC 3A

ICLOCK880-H

Data Sheet
