Half height Turnstile in Pakistan - Turnstile Ts2100-Series

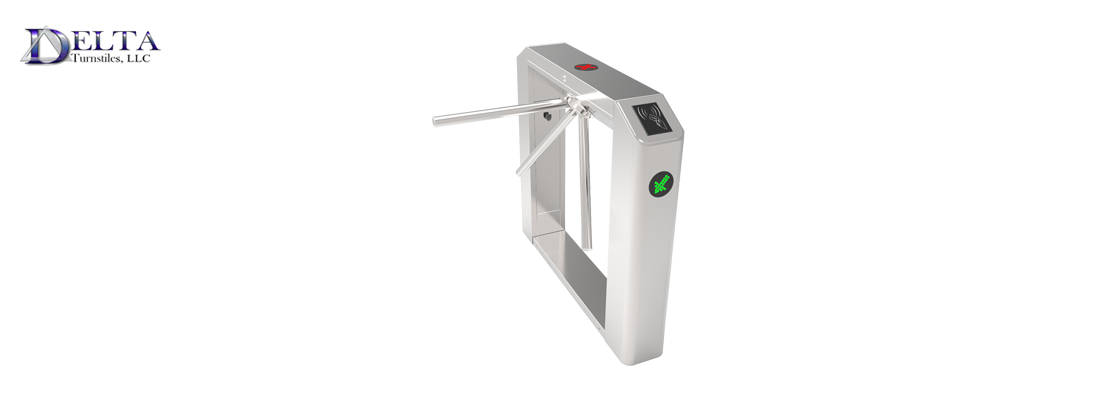

Half height Turnstile in Pakistan - Turnstile Ts2100-Series. Tripod turnstiles are compact and cost-effective entrance solutions. Designing for smooth and silent operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic. The TS2100 series offer a slim, two-legged casework made of stainless steel, ideal for sites where a high traffic and space are issued By receiving a signal from the access control system, or pushing button, it allows the entry of one person in a time. The status is shown on the led-way mode indicators on the top. Entering into different directions are electronically controlled. Default mode is to lock the mechanism until a valid authorization signal is received. If you want to set one side free, you can have it by adjusting the mechanism. In case of emergency, the horizontal arm will drop to allow free passage. Led way mode indicators are included as standard.

  • Alloy steel tripod hub prevents mechanical wear
  • Casework and tripod arms manufactured in SUS304 stainless steel
  • Electromagnets for lock are used only wwhen being activated. They are in standby mode when the device is idle.
  • ZK patented compact mechanism ensures the long life of the lubricating oil inside.
  • High quality electrical components
  • Drop arm designed for emergency purpose
  • Smooth operation designed for mas transit application
  • The pictogram on the device indicating access permission and direction of movement
  • Special designed case shape, user-friendly for passenger to punch card or finger.
  • Flexible reader installation plate. Customers can easily integrate with third party redaer
  • Standard electrical interface for third party device.
  • Using compact mechanism, the turnstile has more space inside for integration
  • ZKTeco provides integration service in factory, with board and peripherals installed, ensuring compliance of the system. When the turnstile is delivered, just plug it in and do the setting. Save the cost of installation.
  • The design of being vacuum at the bottom part of the device, enables easy installation for other hardwares.

Technical Specifications

  • Power Supply     AC 220V/110V, 50/60Hz
  • Operating Temperature     -28 °C- 60 °C
  • Operating Humidity     5%-85%
  • Working Environment     Indoor/Outdoor(shelter)
  • Rated Power     60W
  • Flow Rate     25- 48 passage/minute
  • Casework Material     SUS304
  • Pictogram Indication     Yes
  • Control System     Input controlled by dry contact
  • Emergency Button Input     Yes
  • Dimension     111×98×18(CM) + arm length 50CM
  • Package Dimension     120×108×28(CM)
  • Net Weight     45KG
  • Gross Weight with Package      53KG
  • Optional Function     Alternative material or shape, third-party access control integration, ticket system integration, passage counter

TS2100-SERIES

Data Sheet
