Turnstiles & Access Control Systems in Pakistan - Turnstile Ts5000a

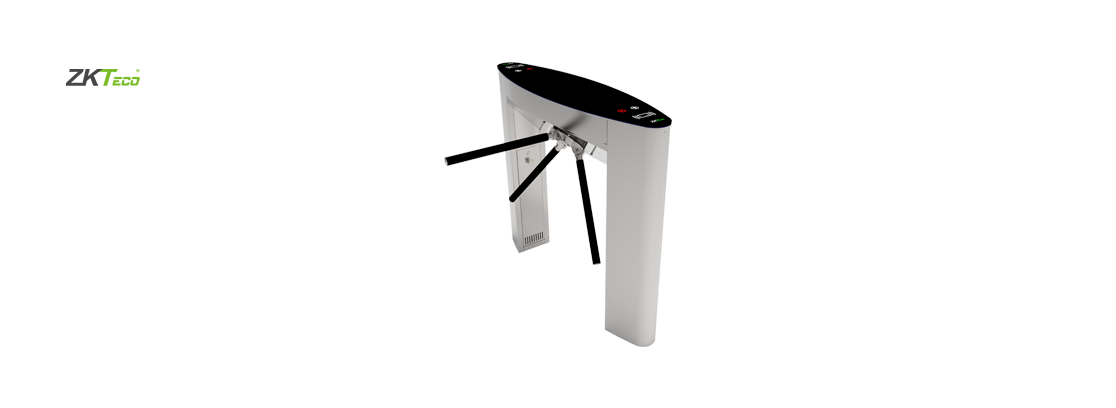

Turnstiles & Access Control Systems in Pakistan. The ZKTeco TS5000A tripod turnstile series is a motorized tripod turnstile series designed for high-traffic volume. TS5000A is an automatic tripod turnstile series designed for smooth and silent operation and consumes very little power. It is made of stainless steel that offers high durability. TS5000A is also surprisingly compact and designed to operate in small workspace.

TS5000A tripod arms are normally held in a locked position, thus denying access to the secured side. Upon the reader (RFID and/or fingerprint) inTS5000A positively recognizing a user’s valid access card or fingerprint, arms unlock and automatically rotate at a slight push. During emergencies and power outages the tripod arms completely collapse, thereby ensuring users FAST unencumbered exit to safety. When the power is on, the arm will automatically lift up to form a secure lane. TS5000A provides both security and convenient space, all in a very durable compact design.

  • SUS304 stainless steel casework & tripod arms ensure long- lasting.
  • Safety Features
  • Tripod-arms unlock & drop during emergencies / power loss.
  • All smooth finishing.
  • Visual indicator for granted access (or denied).
  • Ergonomic design makes card and fingerprint authentication fast & simple for users.
  • Secure. Supports Anti-tailgating.
  • Built-in Reader Integration
  • TS5000A series ships already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
  • TS5000A series and associated access control readers are all factory-tested prior to shipping.
  • ZKTeco provides true plug’n play turnstiles with the lowest possible total cost of ownership in the industry.
  • Easy Operation
  • LCD on the tripod turnstile control board, easy to make setting.

Technical Specifications

  • Power requirements        AC 100 ~ 120V/200 ~ 240V, 50/60Hz
  • Power consumption Starting        73W
  • Standby       20W
  • Unlock        63W
  • Working temperature        -28 °C - 60 °C
  • Working humidity        5%-80%
  • Working environment        Indoor/Outdoor(if sheltered)
  • Speed of throughput        RFID Maximum 32/minute Fingerprint Maximum 28/minute Face Maximum 13/minute Vein Maximum 19/minute
  • Lane width(mm)        500
  • Footprint(mm*mm)        1200*750
  • Dimension(mm)       L=1200, W=300, H=1010
  • Dimension with packing(mm)        L=1310, W=420, H=1100
  • Net weight(kg)        60
  • Weight with packing(kg)        90
  • Cabinet material        SUS304 Stainless Steel
  • Lid material        Tempered Glass
  • Barrier material        SUS304 Stainless Steel
  • Barrier movement        Rotating
  • Emergency mode        Y
  • Security level       Medium
  • MCBF        2 million
  • Options/Accessories        Counter, Card Receiver Box, SUS316 Cabinet and Lid, Remote Control

TS5000A

Data Sheet
