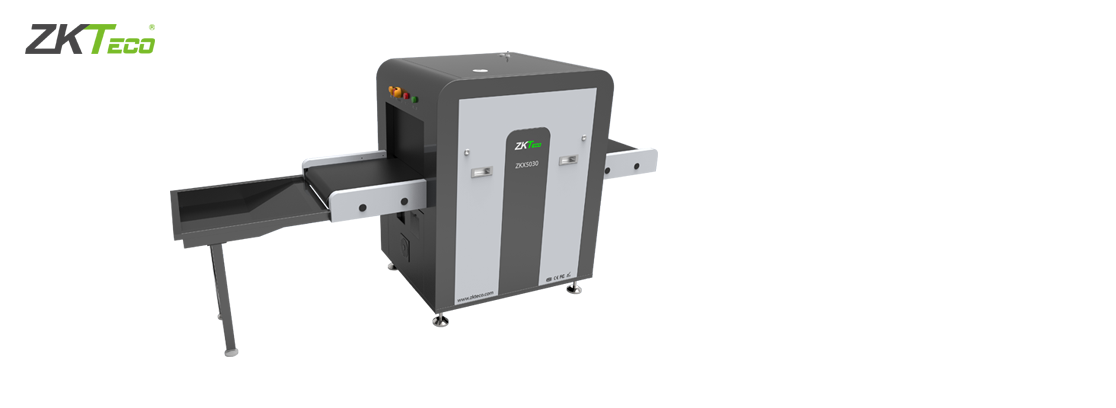

ZKX5030A X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels. ZKX5030A uses reliable high quality single energy X-ray generator. With the superb image algorithm, ZKX5030A could offer clear scanning image, which allows operators to identify potential threat items visually.
With ergonomic modern design, ZKX5030A could help operators to identify suspicious items fast and accurately.

  • Offer higher Wire Resolution with HAMAMATSU® X-ray detector
  • Pseudo-color scanning image
  • Widely usable for small parcels
  • Excellent, ergonomic industrial design
  • Bidirection scan
  • Electrical weighing system
  • Fingerprint Console Board
  • Console Desk

Technical Specifications

  • Tunnel Size     507mm (Width) * 305mm (Height)
  • Speed     0.20m/s
  • Height of Transmission Belt     1000mm
  • Maximum Load      ≤120kg (Adequate distribution)
  • Wire Resolution     34AWG (0.16mm metal wire)
  • Space Definition      Horizontal Φ1.0mm \ Vertical Φ2.0mm
  • Penetrate Definition      32AWG
  • Penetration     8mm Steel board
  • Monitor     17inch LED
  • System Function     High density alarm, TIP, Luggage counter, System running timer, X-ray emitting timer, System maintainance, Training,64 times continuous zoom
  • Optional Function      Video surveillance system, Bidirection scan, Electrical weighing system, Energy saving mode, Ultrasonic rat repellent
  • Flim Safety     ASA/ISO1600 standard of film safety
  • X-ray     System
  • Tube Voltage      80Kv
  • Cooling     Seal oil cooling / 100%
  • Single      Inspection Dosage Rate ≤1.0μ Gy
  • RadiationLeak Dosage     0.1μ Gy/h(5cm from the surface)
  • Installation     Specification
  • Package Size      L1900mm×W990mm×H1320mm
  • Weight     410KG
  • Power      Consumption 1kVA
  • Noise     53.8dB(A)

ZKX5030A

Data Sheet
