Fingerprint Access Device in Pakistan - BioEntry W2 Suprema

 021-111-633-675

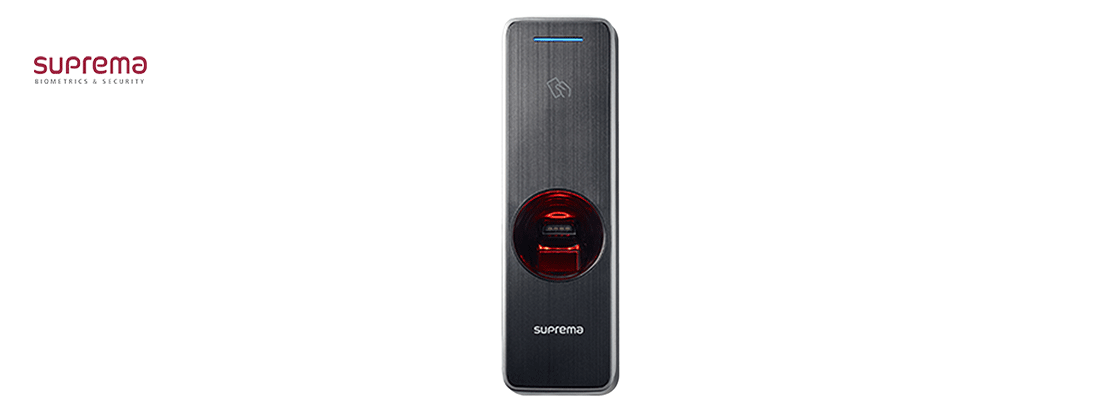

Fingerprint Access Device in Pakistan - BioEntry W2 Suprema is a rugged fingerprint access control device featuring Suprema’s next generation biometric technology and security platform. BioEntry W2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled by powerful quad-core CPU and LFD(live finger detection) technology. The device also provides added flexibility in system design featuring multi-card support with dual-frequency RFID technology. Packed in a rugged IP67/IK09 housing with sleek metal finish, BioEntry W2 is a perfect access control solution for tough environment and outdoor installation.


  • Biometric   :   Fingerprint
  • Sensor Type   :   Optical Sensor (OP5)
  • Template   :   SUPREMA / ISO 19794-2 / ANSI 378
  • Extractor / Matcher   :   MINEX certified and compliant
  • LFD   :   Supported
  • CPU   :   1.2 GHz Quad Core
  • Memory   :   2GB Flash + 256 MB RAM
  • Max. User (1:1)  :   500,000 (Based on one finger enrollment per user
  • Max. User (1:N)   :  100,000 (Based on one finger enrollment per user)
  • Max. Finger per user   :  10
  • Max. Text Log   :   1,000,000
  • LCD   :   Multi-Color
  • Sound   :   Multi-tone Buzzer
  • Ethernet   :   10/100 Mbps, auto MDI/MDI-X
  • RS-485   :   1ch host or slave (selectable), OSDP V2.1.6
  • Wiegand   :   1ch input or output (selectable)
  • TTL   :   2ch Input
  • Relay   :   1 Relay
  • PoE   :   Supported (IEEE 802.3af compliant)
  • Ingress Protection   :  IP67
  • Impact Protection   :  IK09
  • Tamper   :   Supported
  • Power   :  Voltage: DC 12V Current: Max. 600 mA
  • Operating Temperature   :   -20°C ~ 50°C
  • Operating Humidity   :   0% ~ 80%, non-condensing
  • Dimensions (WxHxD, mm)   :   50 x 172 x 43.5
  • Certificates   :  CE, FCC, KC, RoHS, REACH, WEEE

BioEntry W2

Data Sheet
