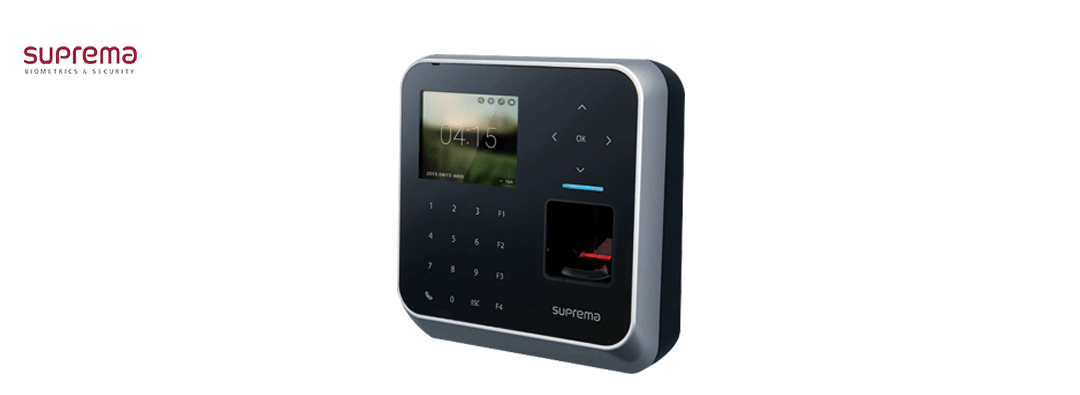

Fingerprint Security System in Pakistan - Biostation 2 Suprema

Fingerprint Security System in Pakistan - Biostation 2 Suprema incorporates the latest Suprema technology in a beautiful exterior. It combines a new powerful processor, Suprema’s next generation optical sensor and improved fingerprint sensing & capturing algorithm to offer unrivaled performance. BioStation 2 provides users with instant authentication and rapid data transfer to manage high volume data with ease. It is ideal for applications that require versatility without compromise in style and performance.

RF Option : 125kHz EM : 125kHz HID Prox
Mobile Card : Not supported : Not Supported
Ingress Protection : IP65 : IP65
Vandal Proof : Not supported : Not supported
Template : SUPREMA / ISO 19794-2 / ANSI 378 : SUPREMA / ISO 19794-2 / ANSI 378
Extractor / Matcher : MINEX certified and compliant : MINEX certified and compliant
Live Face Detection : Supported : Supported
Users (1:1) : 500,000 : 500,000
Users (1:N) : 20,000 : 20,000
Max. Face per User : 10 : 10
Text Log : 3,000,000 : 3,000,000
Image Log : Not supported : Not supported
CPU : 1.0 GHz Quad Core : 1.0 GHz Quad Core
Memory : 8GB Flash + 256MB RAM : 8GB Flash + 256MB RAM
LCD Type : 2.8” color TFT LCD : 2.8” color TFT LCD
LED : Multiple colors : Multiple colors
Sound : 16-bit : 16-bit
Operating Temperature : -20°C ~ 50°C : -20°C ~ 50°C
Storage Temperature : -40°C ~ 70°C : -40°C ~ 70°C
Operating Humidity : 0% ~ 80%, non-condensing : 0% ~ 80%, non-condensing
Storage Humidity : 0% ~ 90%, non-condensing : 0% ~ 90%, non-condensing
Weight : Device: 440g, Bracket: 130g (Including washer and screw) : Device: 440g, Bracket: 130g (Including washer and screw)
Dimension (WxHxD, mm) : 142 x 145 x 45 : 142 x 145 x 45
Tamper : Supported : Supported
Wi-Fi : Built-in, IEEE 802.11 b/g : Built-in, IEEE 802.11 b/g
Ethernet : 10/100 Mbps, auto MDIX : 10/100 Mbps, auto MDIX
RS-485 : 1ch Host or Slave (Selectable) : 1ch Host or Slave (Selectable)
Wiegand : 1ch Input, 1ch Output : 1ch Input, 1ch Output
TTL Input : 2ch Inputs : 2ch Inputs
Relay : 1 Relay : 1 Relay
USB : USB 2.0 (Host) : USB 2.0 (Host)
SD Card : Not supported : Not supported
PoE : IEEE 802.3af compliant : IEEE 802.3af compliant
Intercom : Supported : Supported
Power : DC 12V : DC 12V
