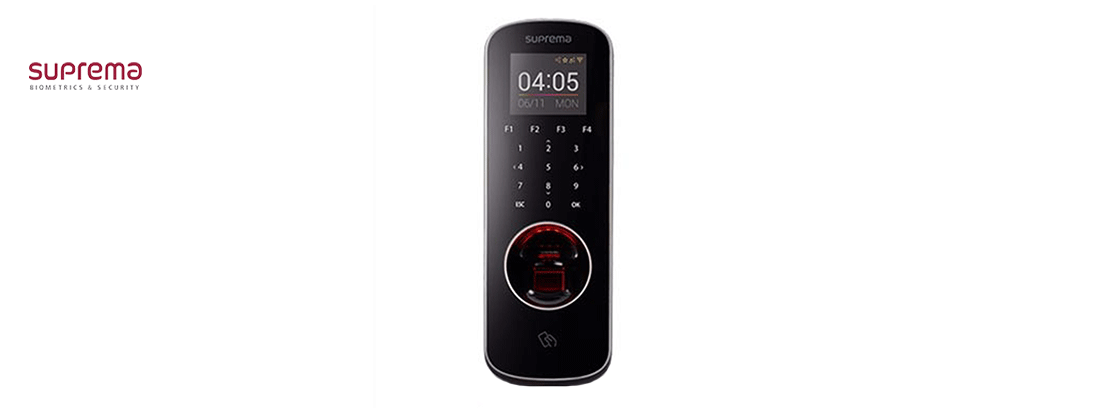

Fingerprint Access Control System in Pakistan - Biostation L2 Suprema

Fingerprint Access Control System in Pakistan - Biostation L2 Suprema is an essential fingerprint terminal that provides comprehensive access control and time attendance features based on Suprema’s next generation biometric technology and security platform. Designed for all type of time-attendance applications, BioStation L2 provides exceptional value by combining World’s best Suprema fingerprint algorithm, high performance and enhanced security features.

RF Option : 125kHz EM : 13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
Mobile Card : Not supported : NFC
Ingress Protection : Not supported : Not supported
Vandal Proof : Not supported : Not supported
Template : SUPREMA / ISO 19794-2 / ANSI 378 : SUPREMA / ISO 19794-2 / ANSI 378
Extractor / Matcher : MINEX certified and compliant : MINEX certified and compliant
Live Face Detection : Supported : Supported
Users (1:1) : 500,000 : 500,000
Users (1:N) : 100,000 : 100,000
Max. Face per User : 10 : 10
Text Log : 1,000,000 : 1,000,000
Image Log : Not supported : Not supported
CPU : 1.2 GHz Quad Core : 1.2 GHz Quad Core
Memory : 2GB Flash + 256MB RAM : 2GB Flash + 256MB RAM
LCD Type : 2” color TFT LCD : 2” color TFT LCD
LED : Not supported : Not supported
Sound : 16-bit : 16-bit
Operating Temperature : -20°C ~ 50°C : -20°C ~ 50°C
Storage Temperature : -40°C ~ 70°C : -40°C ~ 70°C
Operating Humidity : 0% ~ 80%, non-condensing : 0% ~ 80%, non-condensing
Storage Humidity : 0% ~ 90%, non-condensing : 0% ~ 90%, non-condensing
Weight : Device: 280g, Bracket: 61g (Including washer and bolt) : Device: 280g, Bracket: 61g (Including washer and bolt)
Dimension (WxHxD, mm) : 71 x 201 x 44 (Bottom) / 34 (Top) : 71 x 201 x 44 (Bottom) / 34 (Top)
Tamper : Supported : Supported
Wi-Fi : Not supported : Not supported
Ethernet : 10/100 Mbps, auto MDIX : 10/100 Mbps, auto MDIX
RS-485 : 1ch Host or Slave (Selectable) : 1ch Host or Slave (Selectable)
Wiegand : 1ch Input or Output (Selectable) : 1ch Input or Output (Selectable)
TTL Input : 2ch Inputs : 2ch Inputs
Relay : 1 Relay : 1 Relay
USB : Not supported : Not supported
SD Card : Not supported : Not supported
PoE : Not supported : Not supported
Intercom : Not supported : Not supported
Power : DC 12V : DC 12V
