Outdoor Compact RFID Reader in Pakistan - Xpass D2 Suprema

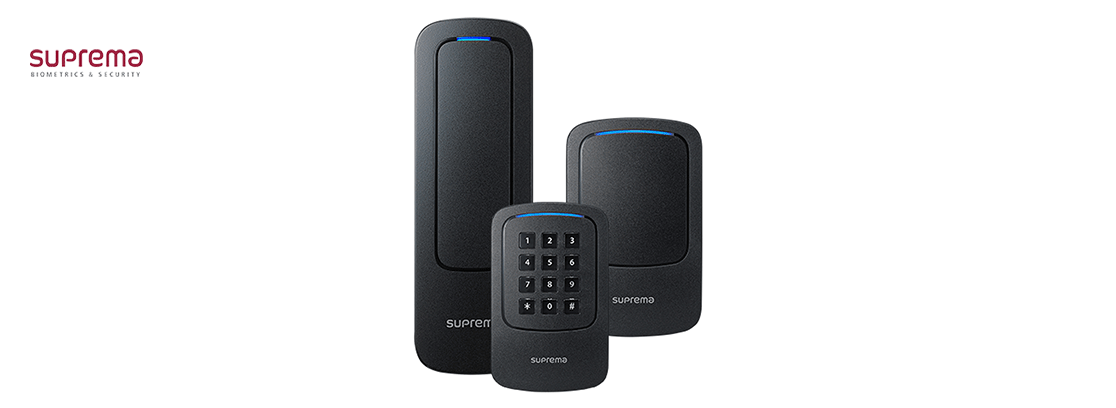

Outdoor Compact RFID Reader in Pakistan - Xpass D2 Suprema is an outdoor compact RFID reader based on Suprema's state-of-the-art RFID technology and multi-hardware platform, optimized for centralized access control systems such as Suprema's CoreStation. Using multi-form factor technology, mullion-type, gangbox-type and gangbox keypad-type are all supported. With dual-frequency (125kHz / 13.56MHz) RFID technology, XPass D2 also supports mobile cards using NFC and BLE, the latest mobile communication technologies. Packed in a rugged IP65/IP67 rated dust & waterproof performance as well as IK08 rated vandal-proof structure, suitable for tough environments and outdoor installations.

RF Option : 125KHz EM, Wiegand Format Card & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
Mobile Card : NFC, BLE
Ingress Protection : IP65, IP67
Vandal Proof : IK08
CPU : 80 MHz
Memory : 256 KB Flash + 64 KB RAM
LCD Type : Not supported
LED : Multiple colors
Sound : Multi-tone Buzzer
Operating Temperature : -35°C ~ 65°C
Storage Temperature : -40°C ~ 70°C
Operating Humidity : 0% ~ 95%, non-condensing
Storage Humidity : 0% ~ 95%, non-condensing
Weight : Device: 117g, Bracket: 30g (Including washer and bolt)
Dimension (WxHxD, mm) : 48 x 144.7 x 27
Tamper : Supported
Wi-Fi : Not supported
Ethernet : Not supported
RS-485 : 1ch Slave
Wiegand : 1ch
TTL Input : Not supported
Relay : Not supported
USB : Not supported
SD Card : Not supported
PoE : Not supported
Intercom : Not supported
Power : DC 12 V
