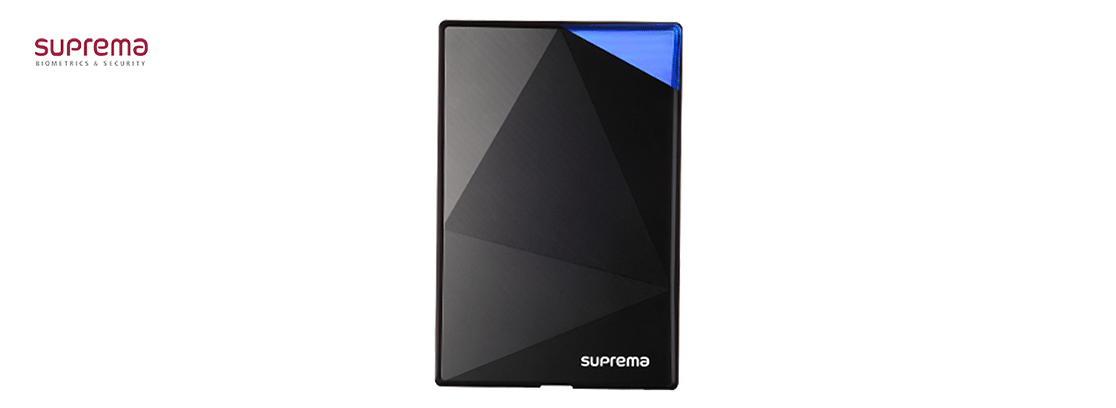

Smart Card Access Control System in Pakistan - Xpass S2 Suprema | Nedo Pakistan

Smart Card Access Control System in Pakistan - Xpass S2 Suprema effortlessly combines key features of a traditional access control system in an ultra slim form factor and is a cornerstone in Suprema’s distributed IP access control system. Xpass S2 is designed to withstand a wider temperature range and can read multiple smartcard technologies making it an ideal product for harsh weather environments.


  • RF Card   :  13.56MHz ISO14443A/B, ISO15693, Mifare, Desfire(CSN), Felica
  • User Capacity   :   50,000
  • Log Capacity   :   100,000
  • Network Interfaces   :   TCP/IP, RS485
  • Wiegand   :   In or Out (Switchable)
  • TTL I/O   :   2 x Input
  • Relay   :  1 x Output
  • CPU   :   32-bit Microprocessor (533Mhz)
  • Memory   :  16MB Flash + 16MB SDRAM
  • Indicator   :  Multi-color LED
  • Sound   :   Multi-tone Buzzer
  • Ingress Protection   :  IP65
  • Operating Temperature   :  -35୅ - 65୅
  • Tamper   :  Optical Tamper
  • Operating Voltage   :  12V DC (Max. 300mA)
  • Dimensions (mm)   :  80(W) x 120(H) x 11.4(D)
  • Certificates   :  CE, FCC, MSIP (KCC), IP65, RoHS, REACH, WEEE

Xpass S2

Data Sheet
